SCSI (Small Computer System Interface; abbreviation: SCSI) cable is widely used in industrial cameras, industrial control, servo motors, industrial equipment, computers, instruments, automobiles, and other fields is a multi-tasking interface that can be a synchronous or asynchronous transfer of data, with the primary line arbitration function, SCSI's application speed is generally 10MB / s to 40MB / s, has now been extended to 80MB / s and 160MB / s.

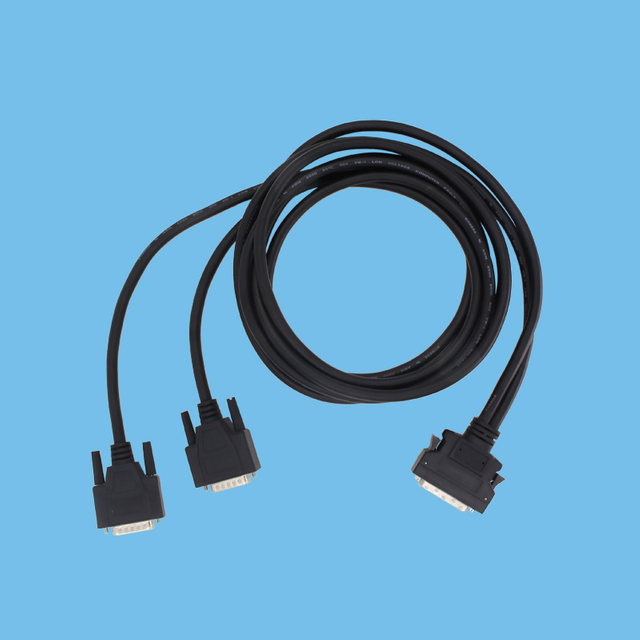

SCSI 14P/20P/26P/36P/40P/50P/68P/100P and many other different P-bit custom cables, each SCSI are assembled plastic case, assembled metal case, injection molding one-piece multi-do model.
We design and manufacture SCSI cables but are not limited to the above. We support customization. We look forward to receiving your inquiry.
SCSI is mainly for the server, workstation, and industrial control equipment markets. It is a connection between the host and peripheral devices interface, including disk drives, tape drives, optical drives, and scanners, including various devices. An independent SCSI bus supports up to 16 devices; SCSI devices occupy the bus equally.
In addition to supporting the familiar hard disk drive and optical drives, SCSI also supports tape drives, extractable hard disks, printers, CD-ROM recorders, MO machines, scanners, CD-ROM cabinets, etc. SCSI supports the instruction set used by different interface devices so that it can provide a broader range of support than other data transfer interfaces.
According to the use of frequency range.
5MHz; 10MHz; 20MHz; 40MHz; 80MHz; 160MHz
By data transfer rate.
5MB/S; 10MB/S; 20MB/S; 40MB/S; 80MB/S; 160MB/S; 320MB/S
By connection method:
Solder wire type, cable solder type, puncture type, 180-degree plug-in board type, 90-degree plug-in board type, SMT connector.
By port classification:
CN type, DB type, VHDCI type (Very High-Density Connector Interface)
Standard SCSI products pin numbers: 14, 20, 26, 36, 40, 50, 68, 100Pin.
Maojia, after 15 years of research and design, has completely covered the product line, can meet the various customization needs of customers, we can give the perfect solution.
Some parameters of SCSI cables
Rated voltage: 300V; rated current: common type: 5A; on impedance:120+/-10 ohn; contact resistance: ≤20mΩ; withstand voltage: 1000V.rm.s.; insulation resistance: 1000MΩ; insertion force: ≤1.2Npn; extraction force: ≥0.2Npn.
Holding force: ≥10Npn; suitable environment: a 40℃~+105C; applicable wire gauge: AWG24 26 or AWG28 30.
180 degrees out of the line, 360 degrees wrapped copper foil run tin

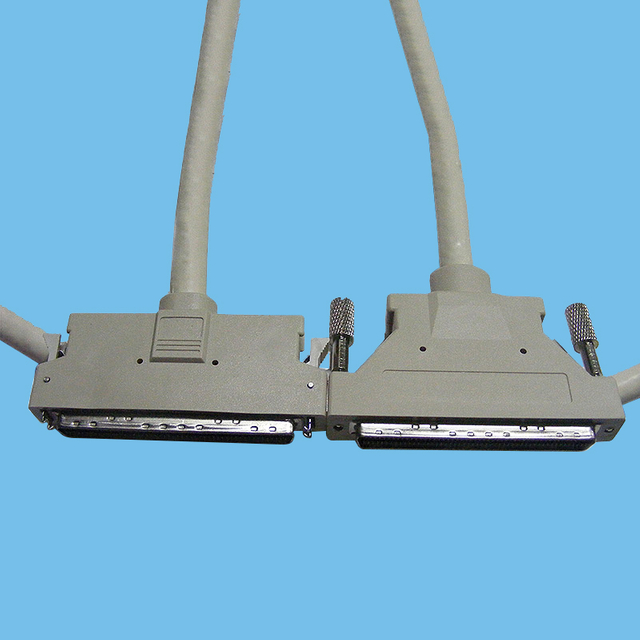

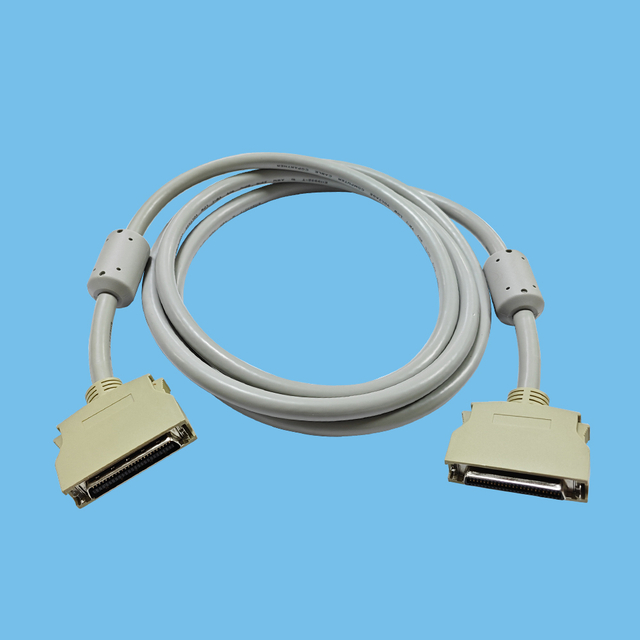

SCSI connector: SCSI14, SCSI20, SCSI26, SCSI36, SCSI40, SCSI50, SCSI68, SCSI100 connection cable, pure copper twisted-pair core, compiled mesh shield + aluminum foil shield, PVC outer quilt, nickel-plated connectors, gold-plated probes. (Customization available)
Cable: UL2919 AWG28 OR AWG30/UL2990 AWG28 OR AWG30/ UL20276 AWG28 OR AWG30 (customizable)
Maojia supports a variety of connector appearances, materials, lengths, colors, cores, and other diversified customization.
Advantages of Maojia D-SUB
Tooling is an essential factor in wire harness customization. Years of custom processing have allowed us to have a wide variety of tooling and a large inventory of tooling so that we can always get the job done quickly. Once we check the specifications the customer requires, our design engineers can use our existing tooling, or if not, we can make the tooling.
Certification of Maojia wire harnesses
As a UL-certified manufacturing facility, we use many standard UL® cable types. Our team can get started faster with known gauge cables and use the harness to our customer's advantage during the assembly process.
Our certifications are also ISO 9001, ISO 13485, and IP67/68, a reflection of our standardized and standardized production, which allows us to integrate technology and fine craftsmanship into our projects perfectly.
Quality testing of Maojia wire harnesses
Once the harness is designed and produced, the critical testing process to ensure quality begins. Every harness we produce is tested for 100% continuity, integrity, polarity, and function before being shipped to customers worldwide. We have a complete test system to detect all anomalies from the inside out because we want to ensure it's right before leaving our facility. We have over 25 quality inspectors at the factory, we are International IPC (IPC/WHMA-A-620D CN) evaluated, and attention to quality and detail is Maojia's core competency.
How to start a custom wire harness
We offer a full range of wire harness and cable assembly design and manufacturing services. Fast manufacturing speed and excellent quality are our strengths, we deliver the perfect solution on time and budget every time, and we are constantly improving our processes.
Over the decades, we have developed a more comprehensive capability to meet the more complex processing of custom services. The process will begin with a detailed dialogue with our customers to review the specifications needed to meet their needs. We will have a strict timeline to ensure completion within the specified time frame.
Our team consists of experienced professionals who are skilled and innovative fabricators. When you are ready to get started, you can contact our team.
